Flow Meter Straight Length Requirements: Upstream and Downstream Pipe Diameter Ratios
Quick Answer: Most industrial flow meters need 5D to 30D of straight pipe upstream and 2D to 5D downstream. The exact ratio depends on the flow meter type and the fitting before the meter. An electromagnetic flow meter often works at 10D upstream, while a vortex meter may need 20D to 30D upstream after an elbow or valve.
Straight length requirements are not a minor detail. A flow meter installed near an elbow, tee, valve or pump reads a distorted velocity profile. Silver Instruments sees this on customer sites in Australia, Vietnam, Saudi Arabia and Brazil. The error can reach 2 percent to 5 percent on liquid lines and 5 percent to 10 percent on gas lines if the straight run is too short.
Straight Length Ratios for Common Flow Meter Types
Most manufacturers quote the straight length in pipe diameter units. Upstream means the pipe section before the sensor in the flow direction. Downstream means the pipe section after the sensor. For a DN100 pipe, 10D upstream equals 1000 mm of straight pipe.
Silver Instruments SIL-EMF electromagnetic flow meters generally need 5D to 10D upstream and 2D to 3D downstream. For compact installation after a control valve, use 10D upstream. Vortex flow meters are more sensitive. A SIL-VF vortex meter should have 15D to 30D upstream and 5D downstream for liquid, steam and gas service. Ultrasonic flow meters vary by transducer configuration. Clamp-on SIL-UF models often need 10D to 20D upstream and 5D downstream when mounted on a single path or dual path. Thermal mass flow meters work best with 15D to 25D upstream and 5D downstream in compressed air and biogas lines.
Coriolis mass flow meters and positive displacement oval gear meters are different. They do not rely on the velocity profile in the same way. A Coriolis meter can often handle 0D to 5D upstream, but support the pipe to avoid vibration. An oval gear flow meter for diesel or fuel oil does not need long straight runs because it measures volume directly inside the chamber.
Why Pipe Diameter Ratios Matter
The D in 10D is the internal diameter of the process pipe, not the flow meter bore. If the pipe schedule changes, the required length changes. For a DN50 Schedule 40 pipe, internal diameter is about 52.5 mm, so 10D is 525 mm. If you use DN50 Schedule 80, internal diameter is about 49.3 mm, so 10D is 493 mm. Most engineers skip this part. We have seen a wastewater site in New Zealand install a magnetic flow meter with only 4D upstream after a partially closed gate valve. The reading jumped by 6 percent when the valve moved.
Installation Conditions That Increase Required Straight Run
An elbow in the same plane disturbs the profile less than two elbows in different planes. A partially open valve, a pump discharge, a check valve or a thermowell can create swirl. In these cases, multiply the upstream straight length by 1.5 to 2.0. A paint manufacturer in Southeast Asia solved a vortex meter stability problem by moving the meter from 8D to 20D upstream of a heat exchanger. For a vortex flow meter downstream of a control valve in a steam line in a food processing plant, use a flow straightener or move the meter to a longer run. Flow straighteners help but they add pressure drop. They also trap solids in slurry or wastewater service. Because of this, we recommend a longer straight

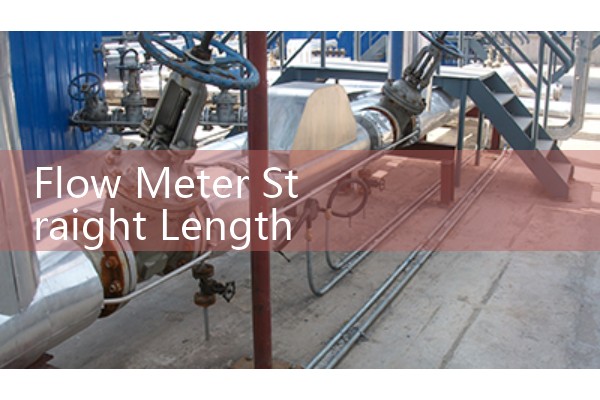

_600x400.jpg)
For gas flow meters in ATEX Zone 1 areas, a short straight run also increases the chance of unstable readings during start-up. Keep the meter at the recommended distance from the pressure regulator and shut-off valve.
Recommended Minimum Straight Lengths for Process Plants
Water and wastewater lines use an electromagnetic flow meter at 10D upstream and 3D downstream. Chemical dosing skids use an oval gear or Coriolis meter with 0D to 5D upstream if the line is full and stable. Steam and gas lines use a vortex flow meter at 20D to 30D upstream after an elbow or valve. Compressed air and biogas lines use a thermal mass flow meter at 15D to 25D upstream. Desalination seawater feed lines use an electromagnetic or ultrasonic flow meter at 10D to 20D upstream.
What Happens When the Straight Run Is Too Short
The flow meter may still pass bench calibration. On site, the reading is not stable. The 4-20 mA HART output can fluctuate by more than 1 percent. Density or temperature compensation cannot fix a distorted velocity profile. In gas service, a short upstream run often makes the vortex shedding signal weak. In magnetic flow meters, it creates a noisy signal and may show empty pipe diagnostics. In ultrasonic flow meters, the transit time difference becomes unstable and the signal strength drops.
How to Send a Straight Length Inquiry to Silver Instruments
Send us your process data before you order. Include pipe size (DN), pipe schedule, upstream and downstream fittings, flow range (m3/h or kg/h for steam and gas), viscosity (cP for fuel oil, syrup or chemical), conductivity (µS/cm for water and wastewater), pressure (bar), temperature (°C) and fluid type. We will calculate the required straight length for your meter model and send a dimensional drawing. Tel: +86-135-1213-1526. WhatsApp: 86-135-12131526. WeChat: +86 13512131526. You can also open flow-meter.com.au and submit the same details.
FAQ
What is the minimum straight length for an electromagnetic flow meter?
Use 5D upstream and 2D downstream as the absolute minimum for a clean line with no valve or pump. We recommend 10D upstream and 3D downstream for water, wastewater and chemical lines.
Does a Coriolis flow meter need straight pipe?
Coriolis meters do not need a long straight run. They measure mass flow directly. Most installations work with 0D to 5D upstream. However, you must support the meter body and avoid pipe stress.
Why do vortex flow meters require more straight pipe?
Vortex meters count vortices shed from a bluff body. A twisted velocity profile changes the shedding frequency. Upstream swirl from an elbow or valve can reduce accuracy. Use 15D to 30D upstream for stable readings.
Can a flow straightener replace a long straight run?
Yes, a flow straightener can reduce the required upstream length. But it adds pressure drop and can clog in dirty or viscous fluids. For sludge, paper stock and wastewater, use a longer pipe run instead of a straightener.
What is the D value in a straight length requirement?
D is the internal diameter of the process pipe at the meter location. For a DN80 pipe with an internal diameter of 77.9 mm, 10D is 779 mm. Always use the pipe internal diameter, not the flange size.
