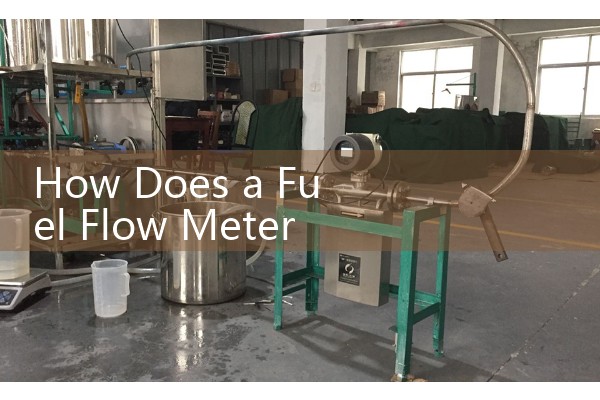

How Does a Fuel Flow Meter Work: Inline Gears vs Acoustic Transducers
Quick Answer: A fuel flow meter measures fuel volume or mass as fuel passes through a pipe. Inline mechanical gear meters count volume by rotating oval or spur gears inside a measuring chamber. Acoustic transducer meters use ultrasonic signals to calculate flow velocity and volume. Silver Instruments supplies both types for diesel, bunker fuel, gasoline, jet fuel and biofuel blending.
Fuel Flow Meter Basics
Fuel flow measurement starts with fuel type, viscosity, flow range and pipe size. Mechanical gear meters measure volume directly. Ultrasonic meters measure velocity first, then the transmitter calculates volume. Coriolis mass flow meters measure mass directly and report kg/h, which is useful for fuel blending or custody transfer where density changes matter. Most fuel consumption monitoring uses volume at line conditions for diesel and gasoline. Fuel is a low conductivity fluid, often below 5 µS/cm, so electromagnetic flow meters are not suitable for fuel lines.
How Inline Mechanical Gear Fuel Flow Meters Work
An oval gear fuel flow meter uses two oval rotors inside a measuring chamber. Fuel pressure makes the rotors turn. Each full rotation moves a fixed volume from inlet to outlet. A sensor counts rotations and the transmitter converts pulses to volume. For diesel, light fuel oil and gasoline, an oval gear meter works well because viscosity is moderate. For heavy fuel oil, larger rotors and wider clearances may be required.
Spur gear or helical gear meters work in a similar way. They are compact and can handle high pressure up to 400 bar in some fuel injection test benches. In practice, mechanical gear meters are selected for flow ranges from 0.5 L/h to 600 L/min depending on pipe size. Silver Instruments has supplied oval gear fuel flow meters to diesel generator test benches in Vietnam. The customer needed pulse output and 4-20 mA HART to connect to a PLC.
How Acoustic Transducer Fuel Flow Meters Work
Ultrasonic fuel flow meters use clamp-on or inline transducers. One transducer sends an acoustic signal through the fuel and the other receives it. The meter measures transit time difference between upstream and downstream signals. The flow computer converts that difference to flow velocity. Knowing pipe diameter, it calculates volume flow rate. For clean diesel, gasoline or jet fuel, ultrasonic meters give no moving parts and low pressure drop.
But ultrasonic meters have limits. Fuels with gas bubbles, water slugs or heavy particulate can scatter the acoustic signal. We have seen this on customer sites where a pump was cavitating. The reading became unstable until the pump inlet pressure was corrected. That is why oil and gas engineers often ask for a mechanical gear meter for start-stop batching or for fuel oil with high viscosity.
Accuracy, Repeatability and Output Signals
Oval gear fuel flow meters commonly reach ±0.5 percent of rate or ±0.2 percent of rate for light fuels. Ultrasonic inline meters often sit between ±1.0 percent and ±0.5 percent depending on installation straight run. Repeatability can be better, often ±0.1 percent for oval gear meters. That matters for fuel consumption tests where repeatable batches are more important than absolute laboratory accuracy.
Output options include pulse, 4-20 mA HART, RS485 Modbus and digital display. Silver Instruments supplies totalizer displays and paperless recorders for fuel consumption logging. For a fuel ethanol blending line in Indonesia, the customer used an oval gear meter with PT100 temperature compensation and 4-20 mA HART. The signal went to a batch controller and a paperless recorder.
Selection by Fuel Type, Flow Range and Pipe Size
Use this guide in practice. For low viscosity fuels under 10 cP, a standard oval gear meter with pulse output works well. For diesel fuel transfer at 10 to 200 L/min, choose an oval gear meter with DN15 to DN50. For ga
For aviation fuel or water contamination risk, many maintenance teams select ultrasonic because there is no moving part to jam. But if the fuel is filtered and has stable viscosity, mechanical gear meters are lower cost for small lines. A customer in Chile asked us for a seawater flow meter for a desalination plant and that application needed an electromagnetic flow meter. Fuel flow meters are for low conductivity fluids.
Installation Factors for Fuel Flow Meter Accuracy
Mechanical gear meters need a strainer or filter upstream. Particles above 100 micron can damage rotors. The meter should be installed with no stress on the flanges. Use a bypass line if continuous operation is required during cleaning. Here is the thing, many engineers skip the air eliminator for batch loading. Air pockets cause measurement errors in mechanical meters and acoustic meters.
Ultrasonic inline meters need straight upstream pipe. For clamp-on meters, follow 10D upstream and 5D downstream if possible. For inline ultrasonic, check the manufacturer recommendation. The pipe wall must be clean and the fuel must be single phase. For hot fuel oil at 120 °C, the transducer material and coupling must be selected correctly. Silver Instruments technical team asks for fuel type, viscosity in cSt at operating temperature, flow range, pipe size, pressure and temperature before quoting.
Silver Instruments Fuel Flow Meter Range
Silver Automation Instruments supplies oval gear fuel flow meters, inline ultrasonic flow meters, Coriolis mass flow meters for fuel mass measurement and batch controllers. Aluminum, stainless steel 304 or 316 bodies are available. Process connections include BSP, NPT, ANSI or DIN flanges. Outputs include pulse, 4-20 mA HART and RS485 Modbus. For hazardous areas, choose ATEX Zone 1 or Zone 2 versions. Typical lead time is 5 to 15 days for standard DN15 to DN100 meters.
Send us your fuel type, viscosity, flow range, operating pressure in bar, operating temperature in °C, pipe size in DN and connection type. We will respond within 24 hours with a model and price. Tel: +86-135-1213-1526. WhatsApp: 86-135-12131526. WeChat: +86 13512131526.
FAQ
What is the difference between mechanical gear and acoustic fuel flow meters? Mechanical gear meters count fixed volume pockets using rotating gears. Acoustic meters use ultrasonic transit time to calculate flow velocity and volume. Mechanical gear meters handle higher viscosity fuel oil better. Acoustic meters have no moving parts.
Can a fuel flow meter measure mass? A Coriolis mass flow meter measures mass directly. A volumetric meter such as oval gear or ultrasonic measures volume. If density changes, mass can be calculated with density compensation or by using a Coriolis meter.
Which fuel flow meter works best for diesel generators? An oval gear fuel flow meter with pulse output and local totalizer works well for diesel generator consumption tests from 1 L/h to 600 L/min. For larger engine rooms, inline ultrasonic meters reduce pressure drop.
Do acoustic fuel flow meters work with heavy fuel oil? They can work with heavy fuel oil if the fuel is degassed and flow profile is stable. In practice, high viscosity and acoustic attenuation reduce signal strength. For heavy fuel oil above 100 cSt, many engineers choose oval gear or Coriolis meters.
What details do I need to send for a fuel flow meter quote? Send fuel type, flow range, pressure, temperature, pipe size and output signal. Silver Instruments will recommend a model from its oval gear, ultrasonic or Coriolis range.
