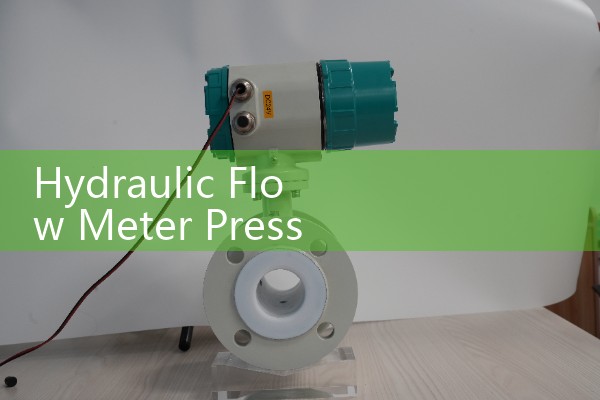

Hydraulic Flow Meter Pressure Tester: Safe Operational Procedures to Prevent Fluid Injection Injuries
Quick Answer: Hydraulic fluid can enter human skin at pressures as low as 7 bar. Always isolate the pump, block the accumulator, and confirm zero pressure at two independent points before touching any test connection. A pressure transmitter with 4 to 20 mA HART output lets you read pressure from a safe distance.
1. Understand the Injury Risk
A pinhole leak in a hydraulic test hose does not always spray loudly. At 200 bar, the jet can be almost invisible and still inject oil into a finger. The wound can look like a small cut for the first hours. Later, the tissue damage spreads inside the hand. That is why safety procedures treat every pressurized connection as a potential injection point.
2. Pre Job Isolation and Zero Pressure Check
Lock out the hydraulic power pack first. Close the accumulator isolation valve and bleed the accumulator to tank. Most engineers skip this part. We have seen this on customer sites in Malaysia and Vietnam. Then check pressure at two independent points. Use a mechanical gauge on the pump block and a HART transmitter on the test line. Both must read zero before any fitting is cracked.
3. Choose the Right Pressure Tester and Flow Meter
For hydraulic oil up to 420 bar, use a pressure tester with a stainless steel 316L wetted path and a blowout resistant dial. Pair that with a flow meter sized for the expected flow range. A DN15 to DN50 oval gear flow meter works well with ISO VG 32 or VG 46 oil from 20 cSt to 1000 cSt. If you need mass flow in kg/h, a Coriolis mass flow meter handles batch tests with higher accuracy. The pressure transmitter should cover 0 to 600 bar, with 4 to 20 mA HART, local display, and IP67 housing.
4. Hose and Fitting Rules
Use hoses rated for the maximum test pressure plus a safety factor of 4 to 1. For a 420 bar test, the hose should carry a 1680 bar burst pressure. Whip checks are mandatory on temporary test lines. Before pressure rises, all quick couplings must be clean and dry. A dirty coupling can hold a small air pocket that turns into a projectile under pressure. Do not wrap your hand around a hydraulic line to feel for leaks.
5. Step by Step Pressure Test Procedure
Step 1: Close the test loop isolation valve and verify the pump is locked out. Step 2: Connect the flow meter pressure tester downstream of the flow meter and upstream of the shutoff valve. Step 3: Open the vent port and fill the loop slowly at low pressure below 5 bar. Step 4: Purge all trapped air through the vent port. Step 5: Ramp pressure in steps of 50 bar. Hold each step for 60 seconds. Step 6: Record pressure and flow rate on a paperless recorder or a 4 to 20 mA HART loop. Step 7: Hold the final test pressure for 10 minutes. Step 8: Depressurize to zero before touching any fitting.
6. What to Do When a Leak Appears
Never tighten a fitting while the line is pressurized. Stop the pump. Let pressure bleed to zero. Then tighten the fitting and restart the ramp. If the leak is a pinhole, treat it as an injection hazard. Use a long wooden stick or plastic strip to locate the jet. Not your hand. A
7. Depressurize and Disconnect
Close the pump discharge valve. Open the vent valve slowly. Watch the mechanical gauge and the transmitter reading at the same time. Once both show zero, wait two minutes and check again. Some hydraulic circuits store energy in accumulators or flexible hoses. Then disconnect the test hoses with gloves and a face shield. Treat the first crack of a fitting as if pressure may still be present.
8. Equipment That Reduces Human Exposure
Silver Instruments supplies pressure transmitters and flow meters used on hydraulic test benches. A pressure transmitter with 0 to 600 bar range, 316L diaphragm, and 4 to 20 mA HART output transmits data to a control room. The operator does not stand near the test point. An optional PT100 temperature sensor in the test tank tracks oil temperature during long runs. In a Zone 1 area, use an ATEX approved pressure transmitter from Silver Instruments. For flow confirmation, an oval gear flow meter from DN15 to DN50 gives direct volume readings for hydraulic oil. A Coriolis mass flow meter gives mass flow in kg/h for expensive test fluids or fuel oil.
9. Common Mistakes We See on Customer Sites
Many maintenance teams use a flow meter pressure tester without a recording function. They rely on one person reading a dial next to the hose. That person is exposed to the highest risk. Other teams do not block the accumulator before starting. This is common on marine steering gear tests. So the pressure drops to zero, then returns suddenly when the accumulator discharges. Always isolate stored energy first. In practice, a five minute lockout takes less time than a hand surgery.
FAQ
What pressure is dangerous for hydraulic fluid injection?
Even 7 bar can break the skin. Industrial test pressures of 100 to 420 bar are far more dangerous. Always treat pinhole leaks as a serious hazard.
Can I use a standard pressure gauge instead of a pressure tester?
Yes for the first pressure check. But a recording pressure transmitter with HART output gives you a safe distance and a complete test record.
Which flow meter works best for hydraulic oil?
An oval gear flow meter from DN15 to DN50 works well for ISO VG 32 or VG 46 hydraulic oil. For mass flow in kg/h, use a Coriolis mass flow meter.
How often should test hoses be replaced?
Replace hoses every 2 years or earlier if the outer cover shows cuts, blisters, or exposed reinforcement. Log the replacement date on the test skid.
Where can I get a quote for a pressure transmitter and flow meter?
Send your pressure in bar, temperature in degree C, pipe size in DN, and flow range to Silver Instruments. Tel: +86-135-1213-1526. WhatsApp: 86-135-12131526. WeChat: +86 13512131526.
Quote and Technical Support
Send us your pressure bar, temperature degree C, pipe size DN, and flow range. We will reply with a data sheet and price. Contact Silver Instruments. Tel: +86-135-1213-1526. WhatsApp: 86-135-12131526. WeChat: +86 13512131526.
