GF+ Flow Meter Systems: Corrosion-Resistant Inline Measuring Tools for Chemical Dosing Lines
Quick Answer
GF+ Flow Meter Systems are a common reference point for inline flow measurement on chemical dosing lines. For corrosive dosing service, specify wetted parts in PVDF or PTFE and an output of 4-20 mA HART. Silver Instruments supplies comparable inline magnetic and ultrasonic meters for these services with shorter lead times in Southeast Asia, Oceania, the Middle East, and Latin America.
What Chemical Dosing Lines Actually Do to Flow Meters
Chemical dosing lines move small volumes under pressure. The chemicals attack wetted parts. Sodium hypochlorite, sulfuric acid, ferric chloride, and caustic soda each cause different failure modes. A meter that works for clean water can fail within weeks on a dosing skid.
We have seen this on customer sites many times. A water treatment plant in Vietnam installed a low cost plastic paddlewheel meter on a 10 percent sodium hypochlorite line. The O ring swelled. The rotor stopped. The PLC lost flow signal and the dosing pump ran dry. That cost more than the meter.
Inline measuring tools for these lines need to handle aggressive media. They also need to handle small pipe sizes. Most chemical dosing lines run DN10 to DN25. That range limits your choices.
Materials That Hold Up in Dosing Service
PVDF and PTFE are the standard wetted materials for aggressive chemicals. PVC works for mild acids and bases at low temperature. Polypropylene is common for caustic soda. For acidic lines with solids, PTFE liners and Hastelloy C electrodes hold up well.
Temperature matters. A dosing line at 25 °C is easy. A dosing line at 80 °C changes chemical aggressiveness. Always confirm chemical compatibility with the actual concentration and temperature. A 5 percent caustic solution at 25 °C is different from 50 percent caustic at 90 °C.
GF+ Flow Meter Systems as a Specification Baseline
GF+ Flow Meter Systems are specified by many skid builders. They include paddlewheel, magnetic, and ultrasonic inline meters with plastic bodies and corrosion resistant liners. Many end users standardize on GF+ because their maintenance team knows the transmitter menu.

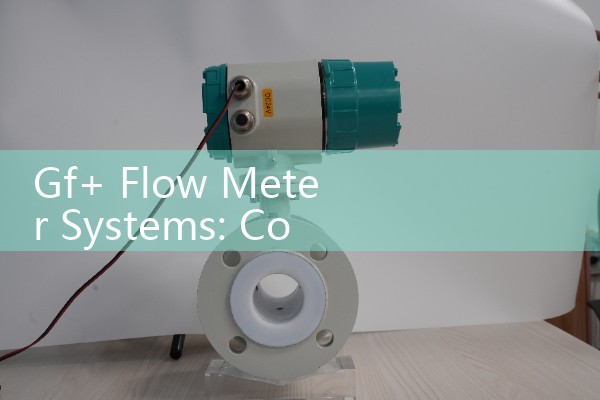

But procurement often changes. A distributor in the Philippines needed a GF+ style inline meter for a chemical dosing skid. The original part had a long lead time. Silver Instruments supplied a DN15 electromagnetic flow meter with PVDF liner and 4-20 mA HART output. The skid builder tested it with 12 percent sodium hypochlorite. It worked without issues.
Silver Instruments Options for Chemical Dosing Lines
Silver Instruments supplies inline flow meters for chemical dosing service. We offer electromagnetic flow meters for conductive chemicals above 5 µS/cm. We also offer ultrasonic inline meters for non conductive chemicals where electromagnetic meters cannot work.
For most dosing pumps, we recommend a DN15 or DN20 electromagnetic flow meter with PTFE or PVDF liner. Electrode material can be Hastelloy C, titanium, or platinum. The transmitter gives 4-20 mA HART as standard. You can order pulse output for batch control. If the line sits in a solvent area, we can add ATEX Zone 1 approval on the transmitter.
For low flow rates below 2 kg/h, we check the actual viscosity in cP. Small oval gear meters or thermal mass meters can work better. But for inline chemical dosing lines with clean liquids, a magnetic meter is often the simplest choice.
Matching Flow Meter Types to Chemical Service
For sodium hypochlorite, caustic soda, and ferric chloride, electromagnetic inline meters work well because these fluids are conductive. For sulfuric acid above 90 percent, conductivity drops. An ultrasonic inline mete
Silver Instruments supplied a DN20 electromagnetic meter for a polymer dosing skid in Malaysia. The fluid was cationic polyacrylamide at 150 cP and 800 µS/cm. The customer used PTFE liner and titanium electrodes. They calibrated the 4-20 mA HART signal to the dosing pump stroke. That change reduced chemical waste by 8 percent in the first month.
Installation Notes That Prevent Rework
Keep the meter full of liquid. Inline meters for dosing lines need a straight run of 5 pipe diameters upstream and 2 downstream for electromagnetic types. Ultrasonic inline meters can handle shorter straight runs in tight skid layouts. Mount the transmitter away from vibration. Dosing pumps create pulsation. Add a pulsation dampener if the flow signal fluctuates more than 5 percent at constant pump speed.
We have seen a chemical dosing skid in Indonesia where the flow reading oscillated badly. The pump was a small diaphragm type. Adding a dampener and changing the transmitter damping to 3 seconds fixed the signal. No meter replacement was needed.
Key Parameters to Send Us
We ask for six data points when you request a quote. Chemical name and concentration. Flow range in kg/h or L/h. Pipe size in DN. Fluid temperature in °C. Operating pressure in bar. Output signal preference, such as 4-20 mA HART or pulse. If the line includes a temperature sensor, tell us if it is PT100. With those points we can confirm a model and price within one working day.
Most engineers skip this part. Then we go back and forth on chemical compatibility. Sending the data early speeds up the quote. It also reduces the chance of selecting the wrong wetted material.
FAQ
Which inline flow meter works for sodium hypochlorite dosing?
An electromagnetic flow meter with PVDF or PTFE liner and Hastelloy C electrodes works for most sodium hypochlorite concentrations up to 15 percent. Confirm temperature and pressure. Output 4-20 mA HART connects to most PLC and dosing pump controllers.
Can Silver Instruments supply a direct replacement for GF+ inline flow meters?
Yes. We cannot use the GF+ brand on our products. But we supply dimensionally similar inline meters for many GF+ flow meter system installations. Send us pipe size, process connection, and signal output. We confirm a match.
What is the minimum flow range for a DN15 inline meter on a dosing line?
Many DN15 electromagnetic meters measure from 0.1 L/h to 1000 L/h depending on velocity and liner. We size the meter to your normal dosing rate. Do not oversize. A meter sized for 5000 L/h will not read a 2 L/h dose accurately.
Do these meters work in hazardous areas?
Yes. We can supply ATEX Zone 1 or Zone 2 approved transmitters for chemical storage and dosing areas. Tell us the gas group and temperature class in your area classification drawing.
What is the typical lead time for Silver Instruments inline chemical dosing meters?
Standard DN10 to DN25 meters with PVDF liners ship from stock to 2 weeks. Special electrode materials or ATEX approvals can add 1 to 2 weeks. We ship to Southeast Asia, Oceania, the Middle East, Africa, and Latin America.
Request a Quote for Your Chemical Dosing Line
Send us your chemical name, concentration, flow range in kg/h, pipe size in DN, fluid temperature in °C, and operating pressure in bar. We will reply with a model and price for a corrosion resistant inline flow meter. Contact Silver Automation Instruments today.
