Crude Oil Flow Meter 1/2 Inch Hydraulic Control Loop Setup
Quick Answer: For a 1/2 inch crude oil hydraulic control loop, use a positive displacement oval gear flow meter or a Coriolis mass flow meter in DN15 size. These meters output a clean 4-20 mA signal proportional to flow, independent of crude viscosity changes. This setup gives reliable feedback for hydraulic actuator motion, test bench controls, and chemical injection metering.
Typical Application: Why 1/2 Inch Crude Oil Loops Demand Solid Flow Data
Hydraulic control loops on crude oil systems often sit on small skids. A 1/2 inch line feeds a hydraulic cylinder or motor. The crude oil flow rate into the actuator determines position or speed. Without accurate flow measurement the control loop drifts. In the oil fields of Sumatra or the Niger Delta such loops operate at 50 to 120 bar and oil temperatures from 30°C to 85°C. Crude viscosity can shift from 8 cP to 300 cP depending on water cut and wax content.
Many installers try a miniature turbine meter because it is cheap. Here is the thing: crude oil carries sand, wax, and asphaltenes. Turbine bearings seize. The square root relationship of differential pressure devices like orifice plates becomes useless at low flows. You need a meter that handles dirty, viscous liquid without recalibration.
Meter Types That Work in DN15 Crude Oil Loops
Silver Instruments supplies two main flow meter variants for 1/2 inch crude oil circuits. The oval gear positive displacement meter is the workhorse. Our DN15 oval gear model measures from 0.5 L/min to 50 L/min with ±0.5% reading accuracy. It uses robust PPS or steel internals. It accepts fluid viscosity up to 1000 cP. The output can be a pulse or a 4-20 mA signal conditioned on board.
For mass balance and density monitoring a Coriolis mass flow meter fits. A DN15 Coriolis meter from Silver Instruments delivers direct mass flow in kg/h and density in kg/m³. It works at line pressures up to 200 bar and temperatures up to 150°C. Because there are no moving parts in the flow stream sand and solids do not jam the sensor. Both meters can be supplied with ATEX Zone 1 or Zone 2 certification for hazardous area hydraulic skids.
In practice most engineers select the oval gear meter when the budget is tight and only volumetric flow is needed. The Coriolis goes into applications where you also need net oil mass, for example a well test separator mini-skid.
Signal Integration into the Hydraulic Control Loop
The flow meter must talk to a PLC or motion controller. The standard output is 4-20 mA with HART 7. The analog 4-20 mA loop sends flow rate directly to the hydraulic valve driver. The HART digital signal gives secondary variables: flow total, fluid temperature, diagnostic flags. This is critical because on a remote wellhead platform in Australia operators want to check meter health and daily totals without a site visit.
Wire the meter as a two-wire device. The loop power comes from the PLC analog input card. Set the 4 mA point to zero flow and 20 mA to maximum design flow, for example 30 L/min. Then the controller adjusts the proportional valve accordingly. Silver Instruments flow meters include a local display with pushbuttons. You can set the range and damping right on the meter body. Most operators set damping to 1 second for hydraulic control. Too much damping la

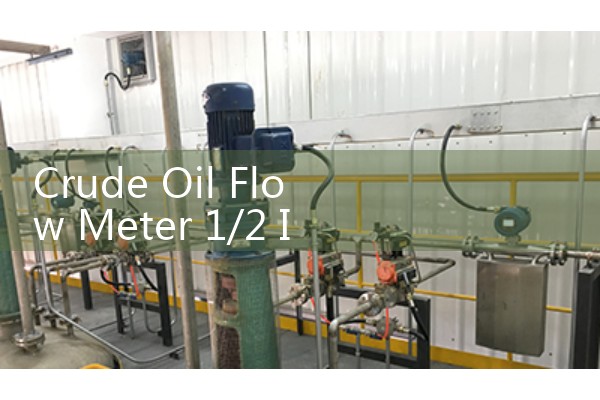

_600x400.jpg)
Installation Tips for 1/2 Inch Lines
Install the meter with a straight run of pipe upstream and downstream if possible. For an oval gear meter 5 DN straight inlet is enough to calm the flow profile. For a Coriolis meter straight runs are not mandatory but avoid strong vibrations. Mount the meter in a horizontal orientation with the electronics housing to the side, not under, to prevent condensation issues.
Do not forget a strainer. Crude from a storage tank often carries debris. A Y-strainer of 40 mesh before the meter protects the gears or the Coriolis tube. In a hydraulic loop pressure spikes happen. Add a snubber or a small accumulator if the pump is a piston type. Silver Instruments oval gear meters can handle pressure peaks to 160 bar. Still, continuous pulsating flow reduces gear life. We have seen this on customer sites many times.
Real Project Example: Nigerian Well Test Skid
Last year a service company in Port Harcourt, Nigeria, built a portable well test package. The hydraulic control loop used a 1/2 inch line to move a diverter valve. They first installed a turbine meter with a frequency output. After two weeks the turbine bearings failed due to fine sand. The crew contacted Silver Instruments. We proposed a DN15 oval gear flow meter with 4-20 mA HART, ATEX Zone 1, and a 40-mesh strainer. The meter shipped ex-stock from our Malaysia hub. The skid has now run 9 months with zero maintenance. The flow data stability improved the valve response time by 30 percent according to their control engineer.
FAQ: Crude Oil Flow Meter 1/2 Inch Hydraulic Control Loop
Q: Can a magnetic flow meter measure crude oil in a control loop?
No. Magnetic flow meters require a conductive liquid. Crude oil has almost zero conductivity so a magmeter will read zero. Use either a positive displacement or Coriolis meter.
Q: What is the typical pressure rating for a 1/2 inch oil flow meter?
Most DN15 oval gear and Coriolis meters from Silver Instruments are rated to 100 to 200 bar. Always state your maximum operating pressure when ordering.
Q: How do I handle high viscosity crude in a small line?
An oval gear meter handles up to 1000 cP easily. The slip decreases with higher viscosity actually improving accuracy. For a Coriolis meter viscosity has no effect on mass measurement. Just ensure the pressure drop is acceptable at your flow rate.
Q: Do I need a flow computer or can a simple PLC read the meter?
A standard PLC analog input can read the 4-20 mA signal directly. You do not need a flow computer. If you use the pulse output for totalization ensure the PLC high-speed counter input is compatible with the meter pulse frequency.
Q: What information should I prepare to get a quote for a crude oil loop meter?
To receive a fast quote from Silver Automation Instruments send your crude oil pressure (bar), temperature (°C), flow range (L/min or kg/h), pipe size (DN), and required certification (ATEX, IECEx). Also mention if you need HART communication. We will recommend the correct meter with 4-20 mA HART output.
To request a price or technical proposal email our team with your process data: pressure (bar), temperature (°C), pipe size (DN), and flow range. Visit flow-meter.com.au to see our full oval gear and Coriolis meter specifications.
